General Tolerance:
As per enclosed data sheet.
Material : Brass
BILL OF MATERIALS
SL. Particulars Material NO.
1. Washer Brass 4
2. Nipple brass 1
3. Inner Seal Rubber 1
4. Cone Brass 1
5. Cone Ring Brass 1
6. Gland Body Brass 1
7. Outer Seal Rubber 1
8. Compression Nut Brass 1
9. Check Nut Brass 1
10. Gasket PVC 1

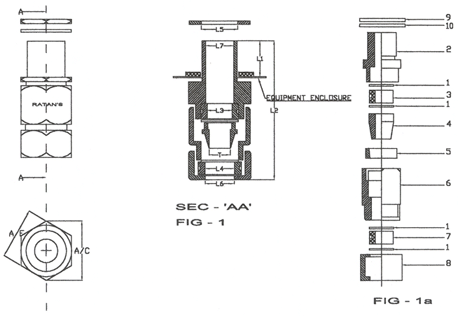

 Ratan's make Double Compression Gland



SL NO. CAT NO. I.D. of Compression
Nut (L6)		 L1
(Nipple Length)
(+/- 2 mm)		 L2
T.Length
(Approx)		 L3
Inner Seal
(+/- 1.5 mm)		 L4
Outer Seal
(+/- 1.5 mm)		 L5
Check Nut I.D.
(+/- 2 mm)		 L7
Nipple I.D.
(+/- 2 mm)		 A/F
(+/- 1.5 mm)		 T
(+/- 1.5 mm)
1 RDG-1515 15.00 13.50 59.00 12.00 15.00 18.00 15.00 24.00 12.00
2 RDG-1715 17.00 13.80 61.00 12.50 17.00 18.00 15.00 24.50 14.00
3 RDG-1915 19.00 14.00 61.00 12.00 19.00 18.00 15.00 26.00 14.00
4 RDG-2021 20.00 15.00 61.00 14.00 20.00 18.00 15.00 27.00 15.50
5 RDG-2221 22.00 15.00 61.00 14.00 22.00 18.00 15.00 27.00 15.50
6 RDG-2521 25.00 15.00 66.00 19.50 25.00 24.00 20.50 33.00 21.50
7 RDG-2721 27.00 15.00 66.00 22.00 27.00 24.00 20.00 34.50 22.00
8 RDG-2927 29.00 16.50 70.00 25.00 29.00 31.00 28.00 40.00 25.00
10 RDG-3327 33.00 16.50 70.00 25.00 33.00 31.00 27.50 43.50 28.00
11 RDG-3533 35.00 11.50 61.00 26.00 35.00 33.00 29.50 42.00 29.00
12 RDG-3833 37.00 17.00 74.00 31.00 37.00 37.00 33.50 47.00 30.50
13 RDG-4033 40.00 16.00 76.00 33.50 40.00 40.50 36.00 54.50 35.00
14 RDG-4239 42.00 16.00 76.00 33.50 42.00 40.50 36.00 54.50 35.00
15 RDG-4745 47.00 16.00 76.00 40.00 47.00 48.00 44.00 56.50 42.00
16 RDG-5045 50.00 15.00 82.00 43.00 50.00 49.00 44.00 62.00 44.00
17 RDG-5245 52.00 15.00 82.00 43.00 52.00 49.00 44.00 62.00 44.00
18 RDG-5545 55.00 17.50 82.00 46.50 55.00 55.00 48.50 65.00 45.50
19 RDG-6165 61.00 17.50 82.00 47.50 61.00 56.00 51.50 67.50 50.00
20 RDG-6356 63.00 17.50 90.00 55.00 63.00 62.00 56.50 70.00 56.00
21 RDG-6662 66.00 19.50 90.00 59.00 66.00 68.50 63.50 73.00 58.00
22 RDG-7366 73.00 19.50 106.00 63.00 73.00 71.00 65.00 85.00 60.50
23 RDG-7870 78.00 23.00 106.00 71.00 78.00 78.00 72.00 92.50 70.00
24 RDG-8370 83.00 25.00 115.00 72.00 83.00 80.50 74.00 99.50 74.50
25 RDG-9081 90.00 27.50 125.00 82.50 90.00 87.00 80.00 107.00 80.50
