Ratan Engineering Company

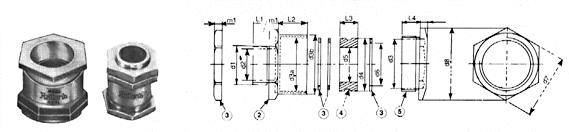

Single compression Brass Cable gland with
complete accessories as per IS : 12943-1990

RATAN'S NO IS. KEF	IRBG 1612 SCG(1)	IRBG 1912 SCG(2)	IRBG 1915 SCG(3)	IRBG 2415 SCG(4)	IRBG 2421 SCG(5)	IRBG 2921 SCG(6)	IRBG 3327 SCG(7	IRBG 3734 SCG(8)	IRBG 4134 SCG(9)	IRBG 4744 SCG(10)	IRBG 5244 SCG(11)	IRBG 6255 SCG(12)	IRBG 6555 SCG(13)	IRBG 7166 SCG(14)	IRBG 7667 SCG(15)	IRBG 8273 SCG(16)	IRBG 9181 SCG(17)	IRBG 9891 SCG(18)	IRBG 0701 SCG(19)	IRBG 0803 SCG(20)
d1	16	16	20	20	25	25	32	40	40	50	51	63	63	75	75	82	90	100	110	125
d2	12	12	15	15	20.5	20.5	27	34	34	44	44	55	55	66	67	73	81	91	100	113
d3	16	18.5	18.5	24	24	28.5	33	37	41	47	52	61.5	65	71	76	82	91	98	107	118
d3a	18.5	21	21	26.5	26.5	31.5	36	40.5	45.5	52	58	66.5	70	77	82	88.5	98	106	115	128
d4	18	20.5	20.5	26	26	31	35	39.5	44.5	51	57	66	69	76	81	87.5	97	105	114	127
d5	12	15	15	18	20	24	28	32	37	42	48	54	60	66	72	78	84	92	100	115
d6	12.5	15.5	15.5	20	20	25	29	33	37	43	49	56	60	67	72	79	85	93	101	116
d7	22	25	25	30	31.5	35	40	46	50	58	65	73	77	85	90	97	108	117	127	142
d8	25.5	29	29	34.5	36	40	46	53	57.5	67	75	84	89	98	104	112	124	135	146	164
L1	9	9	9	9.5	9.5	10	12	12	12	13	13	14	14	15	15	17	19	20	25	25
L2	15	15.5	15.5	18	18	18.5	19.5	21.5	22	24.5	25	25	26	27	27	28.5	30	32	32	32
L3	8	9	9	10	10	11	12	13	14	16	16	17	17	18	18	18	20	20	20	20
L4	9	9	9	10	10	11	11	12	13	15	15	15	15	17	17	18	20	20	20	20
dmi	3	3.5	3.5	3.5	3.5	4	4	4	4.5	5	5	6	6	7	7	7.5	8	8	9	10
d3b	21.5	24	24	29.5	29.5	34.5	39.5	44	49.5	57	63.5	72	76	84	89	96	106	15	125	140
OD(min)	9	12	12	15	16	20	24	28	33	38	43	49	55	61	67	73	79	85	93	101
OD(max)	12	15	15	16	20	24	28	32	37	42	48	54	60	66	72	78	84	92	100	115

MATERIAL : BRASS

FINISH : NICKLE PLATED
