High Conductivity Copper Crimping Lugs

Area Sqmm Cable size E E Enlarge A C D F B K H G J I.S.I Ref Ratan's Cat No. (Old) Ratan's Cat No. (New)
2.5 1/1.8 5.2 - 2.0 3.7 8.7-9.4 1.0 7 3 5 5 20 - RSS-130 RSS-130
2.5 1/1.8 3.2 3.2 2.0 4.2 5.0-5.6 2.2 7 3 5 5 20 CCA-2.5 - RSS-175
2.5 3/1.06 3.2 3.7 2.6 4.6 5.8-6.4 2.0 7 3 5 5 20 CCA -2.5 - RSS-176
4 1/2.8 6.5 - 3.1 4.8 10.5-11.5 1.0 7 3 6 6 22 - RSS-131 RSS-131
4 7/0.85 3.2 4.2 2.9 4.7 6.0-6.6 1.8 7 3 6 6 22 CCA-4 - RSS-177
6 1/3.55 6.5 - 3.8 5.5 10.8-11.4 1.0 9 3 6 6 24 - RSS-132 RSS-132
6 1/3.55 3.2 5.2 3.5 5.5 7.2-7.8 2.0 9 3 6 6 24 CCA-6 - RSS-178
10 7/1.40 6.5 - 4.4 6.2 10.8-11.4 1.3 9 3 6 6 24 - RSS-133 RSS-133
10 1/3.55 4.2 5.2 3.8 5.5 7.4-8.0 1.7 9 . 6 6 24 CCA-10 - RSS-179
10 7/1.40 4.2 6.4 4.4 6.2 8.4-9.0 1.8 9 3 6 6 24 CCA-10 - RSS-180
16 7/1.70 6.5 - 5.3 7.1 10.8-11.4 1.6 12 4 8 6 30 - RSS-134 RSS-134
16 7/1.70 5.2 8.2 5.4 7.2 10.0-10.6 1.8 12 4 8 6 30 CCA-16 - RSS-181
25 7/2.24 6.5 - 7.0 9.0 12.7-13.3 2.0 12 5 12 8 37 - RSS-135 RSS-135
25 7/2.24 6.4 10.2 7.0 9.0 12.7-13.3 2.0 12 5 12 8 37 CCA-25 - RSS-182
35 7/2.50 6.5 - 8.0 10.0 14.8-15.4 2.0 12 5 12 8 37 - RSS-136 RSS-136
35 7/2.50 8.2 - 8.0 10.0 14.8-15.4 2.0 12 5 12 8 37 - RSS-137 RSS-137
35 7/2.50 6.4 10.2 8.0 10.0 14.3-14.9 2.0 12 5 12 8 37 CCA-35 - RSS-183
50 19/1.8 6.5 - 9.2 11.2 15.8-16.8 2.0 16 8 12 9 45 - RSS-138 RSS-138
50 19/1.8 8.2 - 9.2 11.2 15.8-16.8 2.0 16 8 12 9 45 - RSS-139 RSS-139
50 19/1.8 10.2 - 9.2 11.2 15.8-16.8 2.0 16 8 12 9 45 - RSS-140 RSS-140
50 19/1.8 6.4 10.2 9.3 11.3 16.2-17.0 2.0 16 8 12 9 45 CCA-50 - RSS-184
70 19/2.24 8.2 - 11.5 13.8 19.8-20.8 2.3 18 10 15 13 56 - RSS-141 RSS-141
70 19/2.24 10.2 - 11.5 13.8 19.8-20.8 2.3 18 10 15 13 56 - RSS-142 RSS-142
70 19/2.24 12.7 - 11.5 13.8 19.8-20.8 2.3 18 10 15 13 56 - RSS-143 RSS-143
70 19/2.24 8.2 12.7 11.6 13.8 20.0-20.8 2.2 18 10 15 13 56 CCA-70 - RSS-185
95 19/2.5 10.2 10.2 12.8 15.6 22.6-23.4 2.8 20 10 15 13 58 - RSS-144 RSS-144
95 19/2.5 12.7 - 12.8 15.6 22.6-23.4 2.8 20 10 15 13 58 - RSS-145 RSS-145
95 19/2.5 10.2 12.7 12.9 15.6 22.6-23.4 2.7 20 10 15 13 58 CCA-95 - RSS-186
120 37/2.06 10.2 - 14.8 17.8 26.2-27.0 3.0 22 10 16 14 62 - RSS-146 RSS-146
120 37/2.06 12.7 - 14.8 17.8 26.2-27.0 3.0 22 10 16 14 62 - RSS-147 RSS-147
120 37/2.06 16.2 - 14.8 17.8 26.2-27.0 3.0 22 10 16 14 62 - RSS-148 RSS-148
120 37/2.06 10.2 16.2 15.0 18.0 26.2-27.0 3.0 22 10 16 14 62 CCA-120 - RSS-187
150 37/2.24 10.2 - 16.0 19.6 28.5-29.5 3.6 26 11 18 15 70 - RSS-149 RSS-149
150 37/2.24 12.7 - 16.0 19.6 28.5-29.5 3.6 26 11 18 15 70 - RSS-150 RSS-150
150 37/2.24 16.2 - 16.0 19.6 28.5-29.5 3.6 26 11 18 15 70 - RSS-151 RSS-151
150 37.2.24 10.2 16.2 16.5 19.6 28.5-29.5 3.1 26 11 18 15 70 CCA-150 - RSS-188
185 37/2.50 12.7 - 18.0 22.0 32.0-33.0 4.0 28 13 21 21 83 - RSS-152 RSS-152
185 37/2.50 16.2 - 18.0 22.0 32.0-33.0 4.0 28 13 21 21 83 - RSS-153 RSS-153
185 37/2.50 10.2 16.2 18.5 22.0 32.0-33.0 3.5 28 13 21 21 83 CCA-185 - RSS-189
225 37/2.8 16.2 - 20.0 24.0 35.0-36.0 4.0 32 15 24 24 95 - RSS-154 RSS-154
225 37/2.8 12.7 16.2 21.0 25.0 36.5-37.5 4.0 32 15 24 24 95 CCA-225 - RSS-190
240 61/2.24 16.2 - 22.0 26.0 38.1-39.1 4.0 34 15 24 24 97 - RSS-155 RSS-155
240 61/2.24 20.3 - 22.0 26.0 38.1-39.1 4.0 34 15 24 24 97 - RSS-156 RSS-156
240 61/2.24 12.7 20.3 22.0 26.0 38.1-39.1 4.0 34 15 24 24 97 CCA-240 - RSS-191
300 61/2.50 16.2 - 24.0 28.7 41.8-42.8 4.7 36 17 25 25 103 - RSS-157 RSS-157
300 61/2.50 20.3 - 24.0 28.7 41.8-42.8 4.7 36 17 25 25 103 - RSS-158 RSS-158
300 61/2.50 16.2 20.3 25.0 29.4 43.2-44.2 4.4 36 17 25 25 103 CCA-300 - RSS-192
400 61/3.0 20.3 - 28.0 33.2 48.8-49.8 5.2 44 18 27 27 116 - RSS-159 RSS-159
400 61/3.0 16.2 20.3 29.0 34.4 50.4-51.6 5.4 44 18 27 27 116 CCA-400 - RSS-193
500 91/2.65 20.3 - 30.0 36.0 53.0-54.0 6.0 48 18 27 27 120 - RSS-160 RSS-160
500 91/2065 20.3 - 31.0 37.0 54.1-55.3 6.0 48 18 27 27 120 CCA-500 - RSS-194
630 91/3.0 20.3 - 35.0 41.5 61.0-62.0 6.5 53 20 33 31 137 - RSS-161 RSS-161
630 91/3.0 20.3 - 36.0 42.5 62.4-63.8 6.5 53 20 33 31 137 CCA-630 - RSS-195
800 91/3.35 - - 39.0 46.3 67.9-69.3 7.3 68 25 38 37 165 CCA-1000 RSS-162 RSS-162
1000 91/3.75 - - 43.0 53.8 75.5-79.0 10.8 90 30 45 45 210 - RSS-163 RSS-163
1000 91/3.75 - - 43.5 53.8 77.7-79.7 10.3 90 30 45 45 210 - - RSS-196

Material: Copper as per bs 1977
All Dimensions are in mm

Finish :Electro Tinned

Heavy duty Copper tubular Terminal ends for Solderless Crimping to Copper/Aluminium conductors (Din Type)

Area Sqmm E A C D F B K H G J Ratan's Cat No. (Old) Ratan's Cat No. (New)
2.5 4.2 2.4 4.0 8 1.0 7 2 5 4 18 RSSH-130 RSSH-151
4 5.2 3.1 4.8 10 1.0 7 2 6 5 20 RSSH-131 RSSH-152
6 5.2 3.8 5.5 10 1.2 9 3 6 5 23 RSSH-132 RSSH-154
10 6.5 4.5 6.2 12 1.2 9 3 7 6 25 RSSH-133 RSSH-154
16 6.5 5.4 7.1 12 1.4 12 4 7 7 30 RSSH-134 RSSH-155
25 6.5 6.8 8.8 13 2.0 12 4 7 7 30 RSSH-135 RSSH156
35 8.4 8.2 10.6 15 2.4 12 5 9 9 35 RSSH-136 RSSH-157
50 8.4 9.5 12.4 18 2.9 16 6 11 10 43 RSSH-137 RSSH-158
70 10.5 11.2 14.7 21 3.5 18 7 13 12 50 RSSH-138 RSSH-159
95 10.5 13.5 17.4 25 3.9 20 9 13 13 55 RSSH-139 RSSH-160
120 13.0 15.0 19.4 28 4.4 22 10 14 14 60 RSSH-140 RSSH-161
150 13.0 16.5 21.2 30 4.7 26 11 16 16 69 RSSH-141 RSSH-162
185 17.0 18.5 23.5 34 5.0 32 12 17 17 78 RSSH-142 RSSH-163
225 17.0 21.0 26.5 38 5.5 37 13 20 20 90 - RSSH-164
240 17.0 22.0 27.5 38 5.5 38 14 20 20 92 RSSH-143 RSSH-165
300 17.0 23.5 30.0 43 6.5 42 15 22 22 101 RSSH-144 RSSH-166
400 17.0 28.5 36.5 53 8.0 44 18 26 26 114 RSSH-145 RSSH-167
500 21.0 30.0 39.0 56 9.0 48 20 28 28 124 RSSH-146 RSSH-168
625 21.0 35.0 45.0 65 10.0 56 22 33 33 144 RSSH-147 RSSH-169

Material: Copper as per bs 1977
All Dimensions are in mm

Finish :Electro Tinned

Long Barrel Copper Tubular Terminial Ends for Solderless Crimiping to Copper / Aluminium Conductor

Area Sqmm Cable Size E A C D F B K H G J Ratan's Cat No. (Old)
25 7/2.24 8.2 7.0 9.0 13 2.0 16 5 12 8 41 RHSL-025
35 7/2.50 8.2 8.0 10.6 15 2.6 20 5 14 9 48 RHSL-035
50 19/1.80 8.2 9.2 12.2 17 3.0 26 7 16 10 59 RHSL-050
70 19/2.24 10.2 11.5 15.0 20 3.5 28 7 19 12 66 RHSL-070
95 19/2.50 12.7 12.8 17.0 24 4.2 32 10 20 12 74 RHSL-095
120 37/2.06 12.7 14.8 19.6 28 4.8 35 10 23 14 82 RHSL-120
150 37/2.24 12.7 16.0 21.2 30 5.2 38 10 24 14 86 RHSL-150
185 37/2.50 12.7 18.0 24.0 34 6.0 43 12 23 17 95 RHSL-185
240 37/3.00 16.2 22.0 28.0 40 6.0 50 12 30 20 112 RHSL-240

Material: Copper as per bs 1977
All Dimensions are in mm

Finish :Electro Tinned

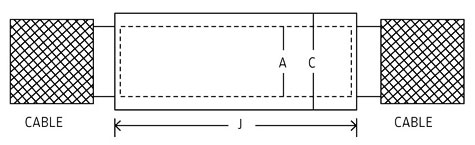

Copper Tubular In-Line connectors for solderless Crimping to aluminium Conductors

Area Sqmm C CABLE SIZE MM2 C-1 CABLE-SIZE A C J RETAIL PACKING ISI REF. RATAN'S CAT NO.
1.5 1/1.4 1.5 1/1.4 1.6 3.2 15 200 - RCC - 311
2.5 1/1.8 2.5 1/1.8 2.0 4.2 15 200 CIX-2.5 RCC-312
2.5 1/1.8 2.5 1/1.8 2.6 4.6 15 200 CIX-2.5 RCC-313
4 1/2.8 4 1/2.8 2.9 4.7 15 200 CIX-4 RCC-314
6 1/3.55 6 1/3.55 3.5 5.5 15 200 CIX-6 RCC-315
10 7/1.4 10 7/1.4 3.8 5.5 15 200 CIX-10 RCC-316
10 7/1.4 10 7/1.4 4.4 6.2 15 200 CIX-10 RCC-317
16 7/1.7 16 7/1.7 5.4 7.2 20 200 CIX-16 RCC-318
25 7/2.24 25 7/2.24 7.0 9.0 25 200 CIX-25 RCC-319
35 7/2.5 35 7/2.5 8.0 10.0 30 100 CIX-35 RCC-320
50 19/1.8 50 19/1.8 9.3 11.3 35 100 COX-50 RCC-321
70 19/2.24 70 19/2.24 11.6 13.8 40 50 CIX-70 RCC-322
95 19/2.5 95 19/2.5 12.9 15.5 45 50 CIX-95 RCC-323
120 37/2.06 120 37/2.06 15.0 18.0 50 30 CIX-120 RCC-324
150 37/2.24 150 37/2.24 16.5 19.6 55 20 CIX-150 RCC-325
185 37/2.5 185 37/2.5 18.5 22.0 60 20 CIX-185 RCC-326
225 37/2.8 225 37/2.8 21 25 65 10 CIX-225 RCC-327
240 61/2.24 240 61/2.24 22 26 65 10 CIX-240 RCC-328
300 61/2.5 300 61/2.5 25 29.4 75 10 CIX-300 RCC-329
400 61/3.00 400 61/3.00 29 34.4 90 5 CIX-400 RCC-330
500 31/2.65 500 91/2.65 31 37 95 5 CIX-500 RCC-331
630 91/3.0 630 91/3.0 36 42.5 105 5 CIX-630 RCC-332
800 91/3.35 800 91/3.35 39 46.3 120 5 CIX-800 RCC-333
1000 91/3.65 1000 91/3.65 43.5 53.8 105 4 CIX-1000 RCC-334

Material: Copper as per bs 1977
All Dimensions are in mm

Finish :Electro Tinned

Compression type Aluminium Tubular Terminal Ends for aluminium conductors

Area Sqmm (1) E (2) F (3) A (4) C (5) D (6) F (7) B (8) H (9) G (10) J (11) Cat No.
2.5 3.2 - 1.9-2.1 5.4-5.6 6.3-6.9 3.3-3.7 7 4 4 18 RASS-164
2.5 3.2 3.7 2.5-2.7 5.4-5.6 6.7-7.3 2.7-3.1 7 4 4 18 RASS-165
4 3.2 4.2 2.8-3.0 5.4-5.6 6.9-7.5 2.4-2.8 7 4 4 18 RASS-166
6 3.2 5.2 3.4-3.6 5.4-5.6 7.2-7.8 1.8-2.2 7 7 6 24 RASS-168
10 4.2 5.2 3.7-3.9 6.1-6.3 8.1-8.7 2.2-2.6 7 9 8 28 RASS-170
10 4.2 6.4 4.3-4.5 7.1-7.3 9.4-10.9 2.6-3.0 9 9 8 30 RASS-171
16 5.2 8.2 5.3-5.4 8.2-8.4 11.1-11.7 2.7-3.1 13 11 9 37 RASS-173
25 6.4 10.2 6.8-7.1 9.6-9.8 13.4-14.0 2.5-2.9 16 11 10 44 RASS-176
35 6.4 10.2 7.8-8.1 10.7-10.9 15.1-105.7 2.6-3.0 18 11 11 47 RASS-180
50 6.4 10.2 9.1-9.4 12.9-13.11 8.0-18.6 3.4-4.0 22 13 11 54 RASS-183
70 8.2 12.7 11.1-11.4 15.4-15.6 21.7-22.3 3.9-4.5 26 13 13 16 RASS-186
95 10.2 12.7 13.0-13.3 17.3-17.5 24.6-25.2 3.9-4.5 28 14 14 64 RASS-189
120 10.2 16.2 14.5-14.9 19.5-19.7 27.7-38.3 4.5-5.1 32 15 15 73 RASS-192
150 10.2 16.2 16.2-16.6 21.4-21.6 30.6-31.2 4.7-5.3 34 17 17 79 RASS-195
185 10.2 16.3 18.2-18.6 23.9-24.1 34.2-35.0 5.0-6.0 36 18 18 84 RASS-200
240 12.7 20.3 20.7-21.3 27.9-28.2 39.6-40.6 6.3-7.3 44 22 22 102 RASS-202
300 16.2 20.3 23.5-24.1 30.9-31.2 44.2-45.2 6.5-7.5 47 27 27 115 RASS-204
400 16.2 20.3 26.5-27.1 35.4-35.7 50.5-51.5 7.8-9.2 56 31 30 130 RASS-206
500 20.3 - 29.5-30.2 40.9-41.2 57.4-58.8 10.1-11.9 60 33 32 140 RASS-207
630 20.3 - 34.5-35.2 45.9-46.2 65.4-66.0 10.1-11.9 59 35 34 154 RASS-208
800 - - 38.5-39.2 50.9-51.2 72.5-74.1 11.1-12.9 77 39 39 180 RASS-209
1000 - - 43.0-43.7 56.8-57.2 80.9-82.9 12.5-14.5 100 45 45 220 RASS-210

Dimension: As per is 8309 1993
All Dimensions are in mm

Conductivity :Above 60 % IACS

Compression Type Aluminium Tubular in-Line Connectors for Solderless Crimping to Aluminium Conductors

Area Sqmm A (2) C (3) J (4)) Ratan's Cat No.
2.5 1.9-2.1 5.4-5.6 15-17 RAC - 2.5
2.5 2.5-2.7 5.4-5.6 15-17 RAC - 2.5/1
4 2.8-3.0 5.4-5.6 15-17 RAC-4
6 3.4-3.6 5.4-5.6 19-21 RAC-6
10 3.7-3.9 6.1-6.3 19-21 RAC-10
10 4.3-4.5 7.1-7.3 19-21 RAC-10
16 5.3-5.5 8.2-8.4 25-27 RAC-16
25 6.8-7.1 9.6-9.8 33-37 RAC-25
35 7.8-8.1 10.7-10.9 38-42 RAC-35
50 9.1-9.4 12.9-13.1 43-17 RAC-50
70 11.1-11.4 15.4-15.6 52-58 RAC-70
95 13.0-13.3 17.3-17.5 57-63 RAC-95
120 14.5-14.9 19.5-19.7 62-68 RAC-120
150 16.2-16.6 21.4-21.6 66-74 RAC-150
185 18.2-18.6 23.9-24.1 71-79 RAC-185
240 20.7-21.3 27.9-28.2 85-95 RAC-240
300 23.5-24.1 30.9-31.2 95-105 RAC-300
400 26.5-27.1 35.4-35.7 109-121 RAC-400
500 29.5-30.2 40.9-41.2 110-131 RAC-500
630 34.5-35.2 45.9-46.2 133-147 RAC-630
800 38.5-39.2 50.9-51.2 152-168 RAC-800
1000 43.0-43.7 56.8-57.2 200-220 RAC-1000

Dimension: As per is 8309 1993
All Dimensions are in mm

Conductivity :Above 60 % IACS

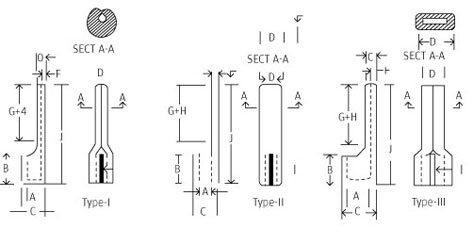

Copper Pin Type Terminal Ends for Solderless Crimping to Aluminium/Copper Conducters Suitable for Contractors Switches and Terminal Blocks.

Area Sqmm Cable Size A C D F E B G+H J Type Retail Packing Tatan's Cat No.
1.5 1/1.40 1.6 3.2 1.9 0.8 - 5 10 17 I 200 RP-1
2.5 3/1.06 2.3 3.9 1.9 0.8 - 5 10 17 I 200 RP-2
2.5 3/1.06 2.3 3.9 3.1 0.8 - 5 10 17 II 200 RP-3
4 7/0.85 2.9 4.9 2.7 1.0 - 6 10 20 I 200 PR-4
4 - 3.6 5.6 5.1 1.0 - 6 10 12 II 200 RP-5
6 7/1.06 3.6 5.6 2.7 1.0 - 6 10 12 I 200 RP-6
6 - 4.0 6.0 2.7 1.0 - 6 10 12 I 200 RP-7
10 7/1.4 4.5 6.7 4.3 1.1 2.4 8 12 22 III 200 RP-8
16 7/1.7 5.8 8.2 5.5 1.2 2.6 10 13 26 III 200 RP-9

ALL DIMENSIONS ARE IN MM.

FINISH: ELECTRO TINNED


Copyright © 2013 Ratan engineering Company. All Rights Reserved.
