Metal Beam Crash Barriers

Metal Beam Crash Barriers is one of the most important road safety system which helps in preventing vehicles from accidents by absorbing the maximum impact of the vehicle, thereby ensuring minimum damage to the vehicle and its occupants.

Metal Beam Crash Barriers is provided on high speed highways to prevent accidents and to ensure high resistance in crash impact because of its flexible beam actions. It minimizes the speed of vehicle and enhances the driver’s confidence while riding through any critical area. It also increases visibility at night or in foggy conditions.

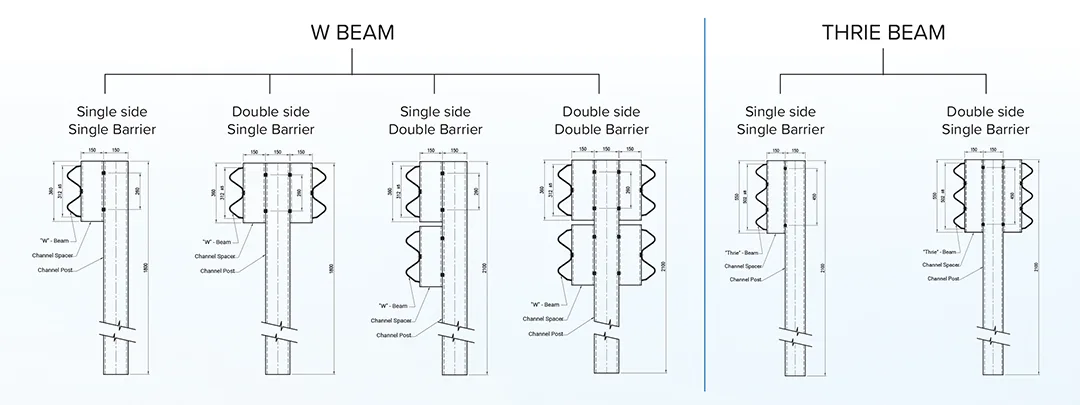

Types of Metal Beam Crash Barriers

W Beams

  • Single Side Single Barrier
  • Single Side Double Barrier
  • Double Side Single Barrier
  • Double Side Double Barrier

Thrie Beams

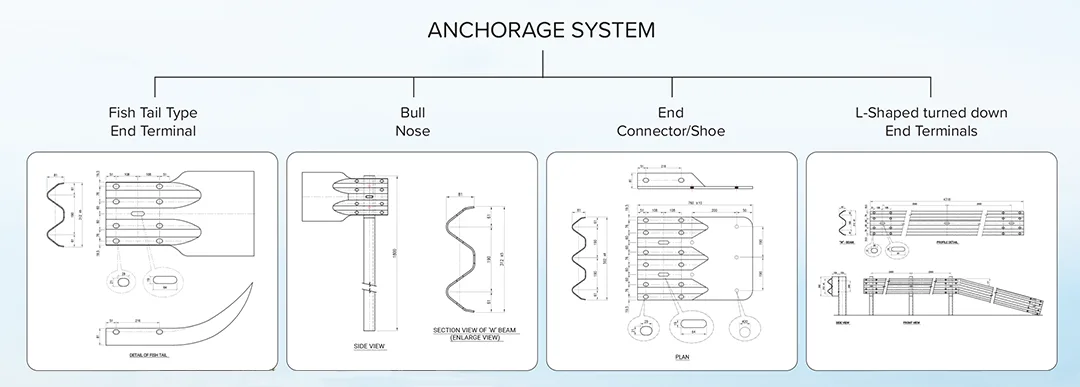

  • Associated Components and Anchorage Systems, viz
  • L – Shaped turned down End Terminals
  • Fish Tail Type End Terminals
  • U – Shaped Median End Terminal
  • Bull Nose and End Connector / Shoe

Product Specifications:

W Beam - L 4318 X W 312 X H 83 X upto T 3.5 MM

Thrie Beam - L 4318 X W 510 X H 83 X upto T 3.5 MM

Post - L 1100 to 2100 X W 150 X H 75 X upto T 5.5 MM

Spacer - L 330 to 540 X W 150 X H 75 X upto T 5.5 MM

Bolts & Nuts (Hex / Button Head) - M16 X P 2.5 X L 40 MM

Raw Material Specifications:

W Beam / Thrie Beam – HR Sheet upto T 3.5 MM as per IS:2062 E250A & E 350A.

Post & Spacer – HR Sheet upto T 5.5 MM as per IS:2062 E250A & E 350A.

Bolts & Nuts (Hex / Button Head) – M16 as per IS:1367 / 1364.

Surface Finishing : Hot Dip Galvanized - As per IS:2629

Note : Specification of raw materials can change as per customer needs.

Conforming to the following Standard Specifications :

IRC 119 Ministry of Road Transport & Highway (MoRTH)
IRC SP – 73 – 2018
Indian Road Congress
EN 1317 – 1 & 2
Road Restraint System
NCHRP – 350
National Cooperative Highway Research Program
GALVANIZING
IS 4759 / EN 1461
FASTENERS
IS 1364 / IS 1367

WHY RATAN’S METAL BEAM CRASH BARRIERS ?

  • Produced from HR Coils procured from Main Producers of Steel
  • Latest Robust & Sturdy Separate Roll Forming Machines for W / Thrie Beams and C – Post / Spacers
  • Skilled Workforce
  • In – house Engineering, Production & Galvanizing Facilities
  • In – house full fledged Mechanical & Chemical Laboratories to undertake all tests
  • ISO 9001 : 2015 Accredited

Applications

  • Highways
  • Expressways
  • Road Edges and Medians
  • Bridges & Bridge Approaches and High Embankment Areas

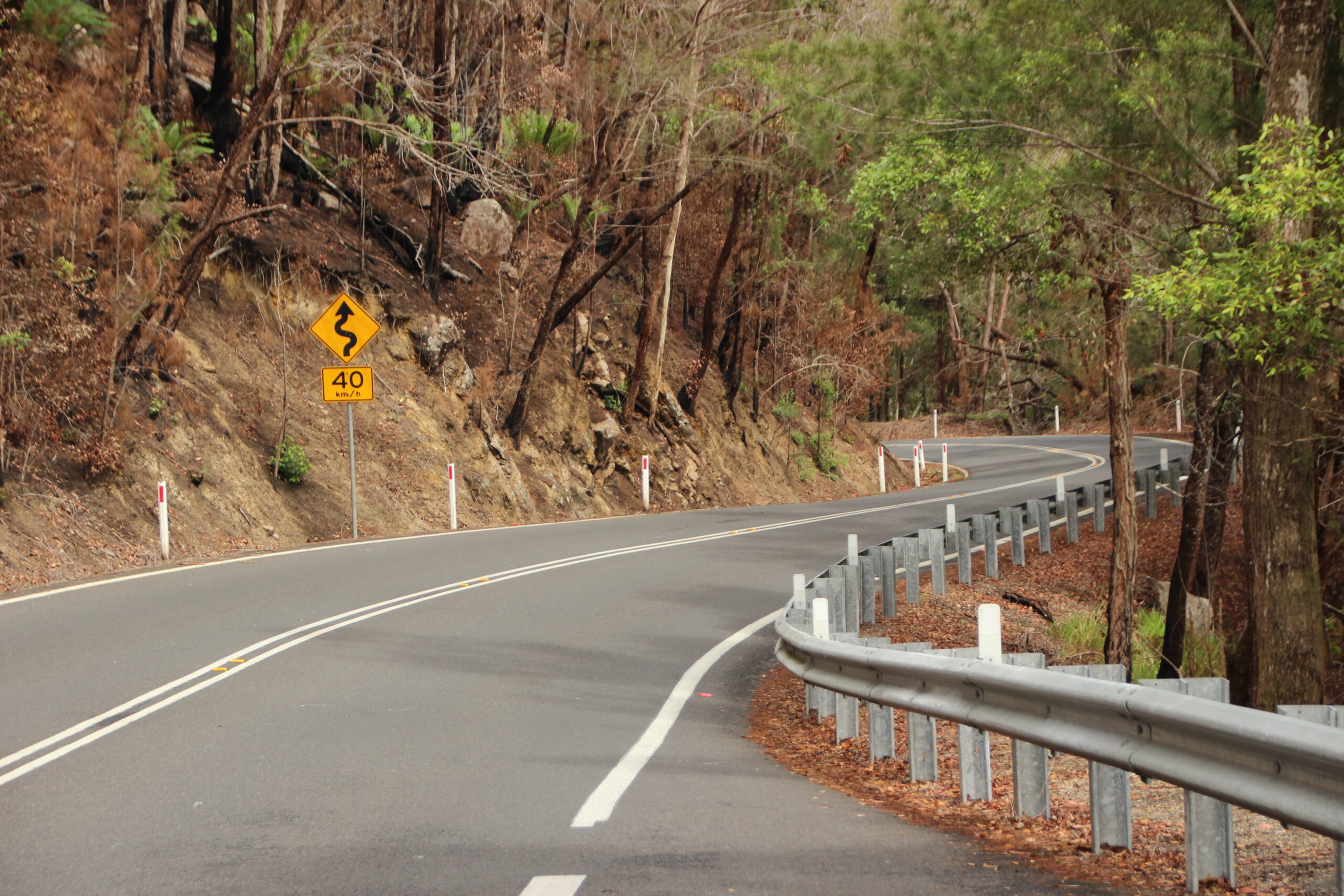

  • Hilly Terrains & Ghat Roads
  • Motor Car Racing Tracks
  • Accident Black Spots
  • Steep Slopes.

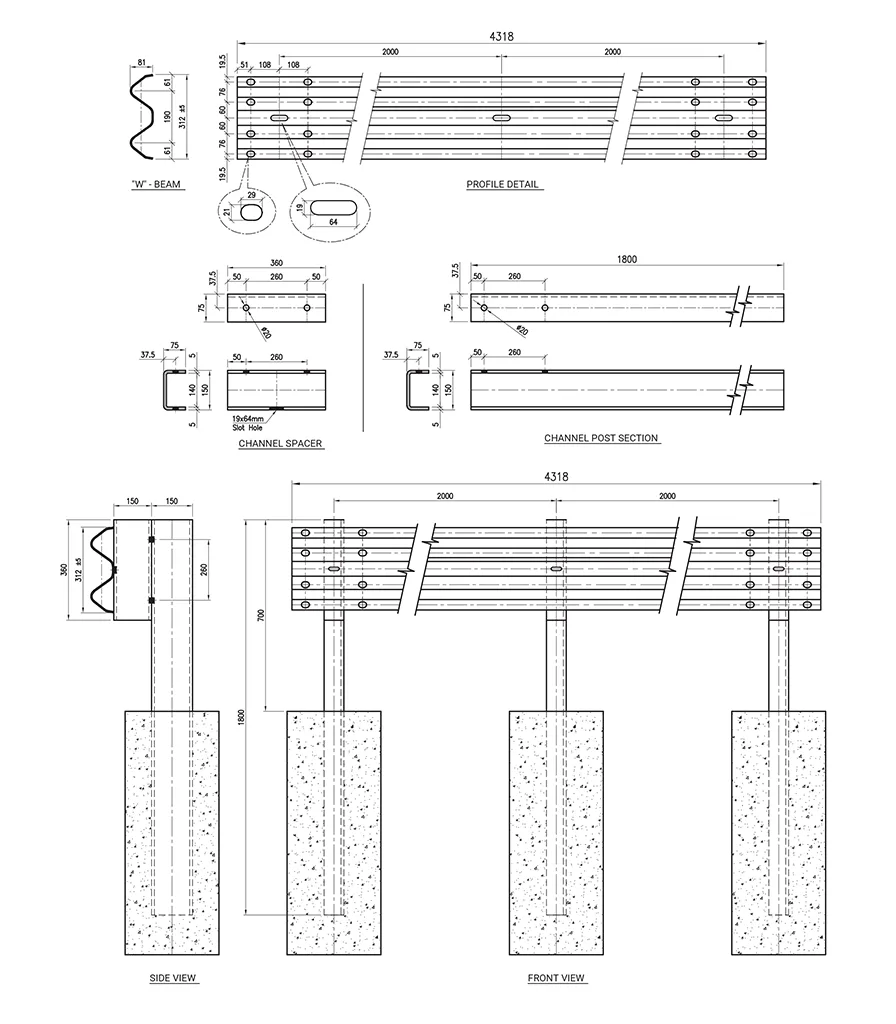

W Beam

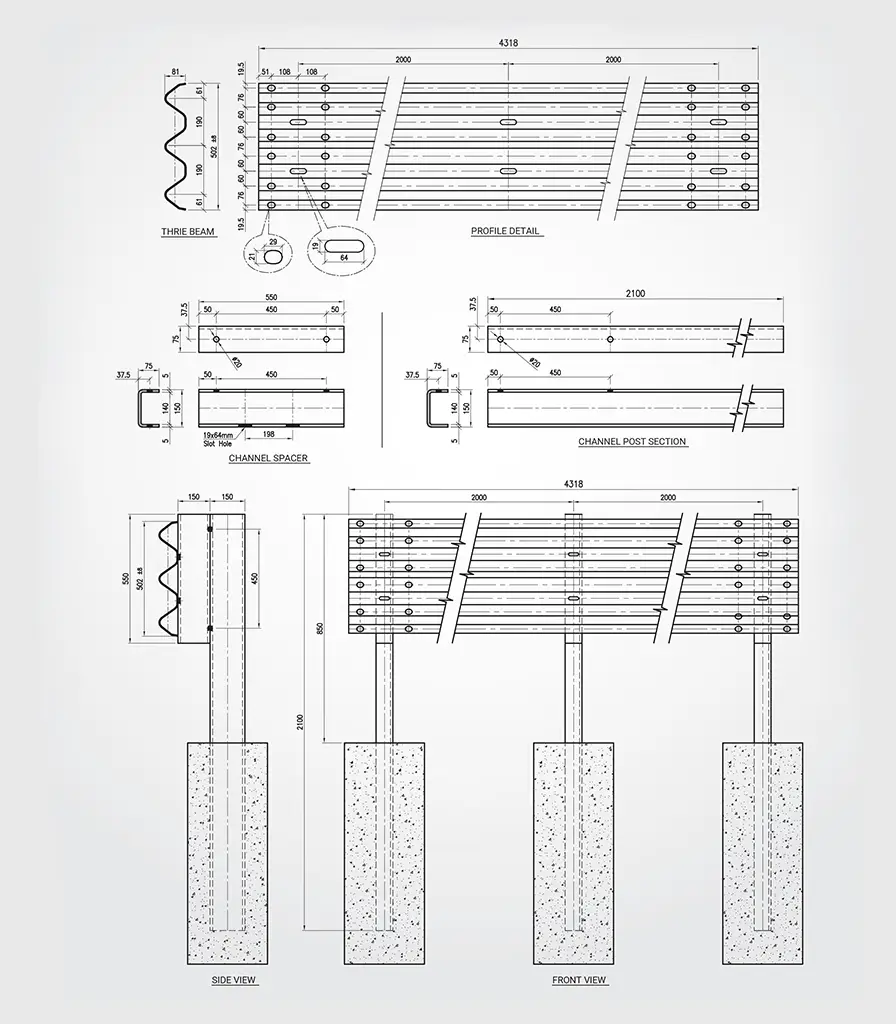

Thrie Beam

Dependable By
World Standards
