Cable Lugs

Cable Lugs

Aluminium xlpe ferrule

Dim. table for xrm ferrule

View Technical Details

Aluminium xlpe lugs

DIM. TABLE FOR XR LUGS

View Technical Details

Aluminium Reducer Type terminal Ends

Aluminium Redicer type terminal Ends for Solderless Ceimping to Aluminium Condustors Suitable for Switch Fuse Units.

View Technical Details

Copper Reducer Type Terminal Ends

Copper Reducer Type terminal Ends for Solderless Crimping Aluminium Conductors Suitable for Switch Fuse Units.

View Technical Details

Copper Ring Tongue Terminal Ends

Copper Ring Tongue Terminal Ends for Solderless Crimping / Aluminium Conductors.

View Technical Details

Left arrow
Back Page

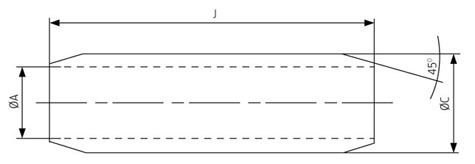

Dim. table for xrm ferrule

Area Sqmm	+0.3 -0.1 ØA	+0.2 -0.2 ØC	± 5.00 J	Ratan's Cat No.
16	5.4	7.4	35	RXLC-16
25	7.2	9.6	37	RXLC -25
35	8.3	11.1	42	RXLC-35
50	9.5-10.1	12.4-13.5	47	RXLC-50
70	10.2	14.5	57	RXLC-70
95	12	16.9	62	RXLC-95
120	13.7	19	68	RXLC-120
150	15.1	21.1-21.2	73	RXLC-150
185	16.6	23.9	78	RXLC-185
225	18.6	26.1	88	RXLC-225
240	19.3	27.2	93	RXLC-240
300	21.8	30.2	104	RXLC-300
400	25	34.8	119	RXLC-400
500	28.2	39.1	129	RXLC-500
630	31.7	44.4	144	RXLC-630
800	35.7	49.5	164	RXLC-800
1000	41	56	214	RXLC-1000

ALL DIMENSIONS ARE IN MM.

CONDUCTIVITY:ABOVE 60% IACS

DIM. TABLE FOR XR LUGS

Area Sqmm	± 0.12 ØE	+0.3-0.0 ØA	± 0.2 ØC	± 0.5 D	± 0.5 F	+3-0 B	± 0.5 K	± 0.5 H	± 0.5 G	± 5.0 J	Ratan's Cat No.
16	8.4	5.4	7.4	11.0	2.0	14	5	9	9	37	RXLS-16
25	8.4	7.2	9.6	14.0	2.4	41	7	12	9	69	RXLS -25
35	10.5	8.3	11.1	16.0	2.8	50	7	11	11	79	RXLS-35
50	10.5	10.1	13.5	19.5	3.4	49	8	13	11	81	RXLS-50
70	13.0	10.2	14.5	20.5	4.3	62	8	13	13	96	RXLS-70
95	13.0	12.0	16.9	23.5	4.9	73	8	14	14	109	RXLS-95
120	13.0	13.7	19.0	26.5	5.3	73	11	15	15	114	RXLS-120
150	13.0	15.1	21.1	29.5	6.0	83	11	17	17	128	RXLS-150
150	17.0	15.1	21.1	29.5	6.0	83	11	17	17	128	RXLS-150/2
185	17.0	16.6	23.9	33.0	4.3	83	12	18	18	131	RXLS-185
225	17.0	18.6	26.1	36.0	7.5	86	14	20	20	140	RXLS-225
240	17.0	19.3	27.2	37.5	7.9	86	14	22	22	144	RXLS-240
300	17.0	21.8	30.2	42.0	8.4	89	14	27	27	157	RXLS-20/1
300	20.0	21.8	30.2	42.0	8.4	89	14	27	27	157	RXLS-20/2
400	17.0	25.0	34.8	48.0	9.8	113	13	30	30	186	RXLS-400
500	17.0	28.2	39.1	54.0	10.9	125	15	32	32	204	RXLS-500
630	17.0	31.7	44.4	61.0	12.7	140	16	34	34	224	RXLS-630
800	20.3	35.7	49.5	68.0	13.8	147	25	39	39	250	RXLS-800
1000	20.3	41.0	56.0	77.5	15.0	160	30	45	45	280	RXLS-1000

ALL DIMENSIONS ARE IN MM.

CONDUCTIVITY:ABOVE 60% IACS

Aluminium Reducer Type terminal Ends

Area sqmm	Cable Size	A	C	D	D-1	B	K	G+H	J	Retail Packing	Ratan's Cat. No.
2.5	3/1.06	2.6	5.5	3.8	3.3	6	4	11	21	200	ARTF-301
2.5	3/1.06	2.6	5.5	4.5	4	6	4	13	23	200	ARTF-302
4	7/0.85	2.9	5.5	3.8	3.3	8	4	11	23	200	ARTF-303
4	7/0.85	2.9	5.5	4.5	4	8	4	13	25	200	ARTF-304
6	1/2.8	3.5	5.5	3.8	3.3	8	4	11	23	200	ARTF-305
6	1/2.8	3.5	5.5	4.5	4	8	4	13	25	200	ARTF-306
10	7/1.4	4.4	7.4	3.8	3.3	12	4	11	27	200	ARTF-307
10	7/1.4	4.4	7.4	4.5	4	12	4	13	29	200	ARTF-308
16	7/1.7	5.4	8.3	4.5	4	15	5	13	33	200	ARTF-309
16	7/1.7	5.4	8.3	6	5.5	15	5	15	35	200	ARTF-310
25	7/2.24	7	10	6	5.5	16	5	15	36	100	ARTF-311
25	7/2.24	7	10	7.5	6.5	16	5	20	41	100	ARTF-312
35	7/2.5	8	10.8	6	5.5	18	5	15	38	100	ARTF-313
35	7/2.5	8	10.8	7.5	6.5	18	5	20	43	100	ARTF-314
50	19/1.8	9.2	13	7.5	6.5	22	6	20	48	100	ARTF-315
50	19/1.8	9.2	13	9	8	22	6	20	48	100	ARTF-316
70	19/2.24	11.5	16	7.5	6.5	22	6	24	52	50	ARTF-317
70	19/2.24	11.5	16	11.5	10.5	22	6	27	55	50	ARTF-318
95	19/2.5	12.8	17	7.5	8.5	28	7	24	59	50	ARTF-319
95	19/2.5	12.8	17	11.5	10.5	28	7	27	62	50	ARTF-320
95	19/2.5	12.8	17	15.6	14	28	7	35	70	50	ARTF-321
120	37/2.06	14.8	19.6	7.5	6.5	30	7	24	61	30	ARTF-322
120	37/2.06	14.8	19.6	11.5	10.5	30	7	27	64	30	ARTF-323
120	37/2.06	14.8	19.6	15.6	14	30	7	35	72	30	ARTF-324
150	37/2.24	16	21	11.5	10.5	32	7	31	70	20	ARTF-325
150	37/2.24	16	21	15.6	14	32	7	35	74	20	ARTF-326
185	37/2.5	18	23.5	11.5	10.5	36	8	31	75	20	ARTF-327
185	37/2.5	18	23.5	15.6	14	36	8	35	79	20	ARTF-328
225	37/2.8	20	27	15.6	14	40	8	35	83	10	ARTF-329
225	37/2.8	20	27	21	19.5	40	8	45	93	10	ARTF-330
240	61/2.24	22	28	15.6	14	42	8	35	85	10	ARTF-331
240	61/2.24	22	28	21	19.5	42	8	45	95	10	ARTF-332
300	61/2.5	24	31	15.6	14	43	8	38	89	10	ARTF-333
300	61/2.5	24	21	21	19.5	43	8	47	98	10	ARTF-334
400	61/3.00	28	36	21	20	50	10	52	112	5	ARTF-335
400	61/3.00	28	36	23.8	22	50	10	54	114	5	ARTF-336

ALL DIMENSIONS ARE IN MM.

CONDUCTIVITY : ABOVE 60% IACS

Copper Reducer Type Terminal Ends

Area Sqmm	Cable Size	A	C	D	D-1	B	K	G+H	J	Retail Packing	Ratan's New Cat. No.
2.5	3/1.06	2.5	4.7	4.5	4.0	6	4	10	20	200	RRTF-1
2.5	3/1.06	2.5	4.7	3.8	3.3	6	4	10	20	200	RRTF-2
4>	7/0.85	2.8	4.7	4.5	4.0	6	4	10	20	200	RRTF-3
4	7/0.85	2.8	4.7	3.8	3.3	6	4	10	20	200	RRTF-4
6	1/2.8	3.1	4.7	4.5	4.0	6	4	10	20	200	RRTF-5
6	1/2.8	3.1	4.7	3.8	3.3	6	4	10	20	200	RRTF-6
10	1/3.55	3.8	5.5	4.5	4.0	9>	4	10	23	200	RRTF-7
10	1/3.55	3.8	5.5	3.8	3.3	9	4	10	23	200	RRTF-8
10	7/1.4	4.4	6.2	4.5	4.0	9	4	10	23	200	RRTF-9
10	7/1.4	4.4	6.2	3.8	3.3	9	4	10	23	200	RRTF-10
16	7/1.7	5.3	7.1	6.0	5.5	12	5	15	32	200	RRTF-11
16	7/1.7	5.3	7.1	6.0	5.5	12	5	20	37	200	RRTF-12
16	7/1.7	5.3	7.1	3.8	3.3	12	5	13	30	200	RRTF-13
25	7/2.24	7.0	9.0	6.0	5.5	12	5	15	32	100	RRTF-14
25	7/2.24	7.0	9.0	7.5	6.5	12	5	20	37	100	RRTF-15
35	7/2.5	8.0	10.0	7.5	6.5	12	5	20	37	100	RRTF-16
50	19/1.8	9.2	11.2	7.5	6.5	16	5	20	41	100	RRTF-17
50	19/1.8	10.4	14.0	14	13	18	7	24	49	100	RRTF-18
70	19/2.24	11.5	13.8	7.5	6.5	18	5	20	43	50	RRTF-19
70	19/2.24	11.5	13.8	11.5	10.5	18	5	25	48	50	RRTF-20
70	19/2.24	11.5	13.8	11.5	10.5	18	5	32	55	50	RRTF-21
95	19/2.5	12.8	15.6	11.5	10.5	20	6	25	51	50	RRTF-22
95	19/2.5	12.8	15.6	15.6	14.0	20	6	27	53	50	RRTF-23
95	19/2.5	12.8	15.6	7.5	6.5	20	6	22	48	50	RRTF-24
95	19/2.5	12.8	15.6	12.8	11.8	20	6	32	58	50	RRTF-25
120	37/2.06	14.8	17.8	11.5	10.5	22	6	25	53	30	RRTF-26
120	37/2.06	14.8	17.8	7.5	6.5	22	6	22	50	30	RRTF-27
120	37/2.06	14.8	17.8	11.5	10.5	22	6	32	60	30	RRTF-28
120	37/2.06	14.8	17.8	15.6	14	22	6	32	60	30	RRTF-29
150	37/2.24	16.0	19.6	15.6	14	26	6	32	64	20	RRTF-30
150	37/2.24	16.0	19.6	11.5	10.5	26	6	32	64	20	RRTF-31
185	37/2.5	18	22	15.6	14	32	6	32	70	20	RRTF-32
185	37/2.5	18	22	11.5	10.5	32	6	32	70	20	RRTF-33
225	37/2.8	20	26	15.6	14	38	8	32	78	10	RRTF-34
225	37/2.8	20	26	21	18	38	8	42	88	10	RRTF-35
225	37/2.8	20	26	16	15	38	8	42	88	10	RRTF-36
240	61/2.24	22	26	16	15	38	8	42	88	10	RRTF-37
240	61/2.24	22	26	15.6	14	38	8	32	78	10	RRTF-38
300	61/2.5	24	28.7	16	15	42	8	42	92	10	RRTF-39
300	61/2.5	24	28.7	15.6	14	42	8	32	82	10	RRTF-40
400	61/3.0	28	33.2	21	18	46	10	48	104	5	RRTF-41
400	61/3.0	28	33.2	23.8	21	46	10	52	108	5	RRTF-42

ALL DIMENSIONS ARE IN MM.

FINISH:ELECTRO TINNED

Copper Ring Tongue Terminal Ends for Solderless Crimping / Aluminium Conductors.

Area Aqmm	E	A	C	D	F	B	K	H	L-1	J	Retail Packing	Ratan's Cat. No.
16	5.2	5.6	8.0	10	1.2	10	3	6	19	24	200	RTE-60
16	5.2	5.6	8.0	12	1.2	10	4	6	20	26	200	RTE-61
16	6.4	5.6	8.0	12	1.2	10	4	6	20	26	200	RTE-62
16	6.4	5.6	8.0	16	1.2	10	4	8	22	30	200	RTE-63
16	8.2	5.6	8.0	16	1.2	10	4	8	22	30	200	RTE-64
16	9.7	5.6	8.0	16	1.2	10	4	8	22	30	200	RTE-65
16	8.2	5.6	8.0	18	1.2	10	4	10	24	33	200	RTE-66
16	10.2	5.6	8.0	18	1.2	10	4	10	24	33	200	RTE-67
16	10.2	5.6	8.0	22	1.2	10	6	8	24	35	200	RTE-68
16	12.7	5.6	8.0	22	1.2	10	6	8	24	35	200	RTE-69
25	6.4	7.5	11.1	12	1.8	11	4	10	25	31	100	RTE-70
25	8.2	7.5	11.1	12	1.8	11	4	10	25	31	100	RTE-71
25	6.4	7.5	11.1	16	1.8	11	5	6	22	30	100	RTE-72
25	8.2	7.5	11.1	16	1.8	11	5	6	22	30	100	RTE-73
25	10.2	7.5	11.1	16	1.8	11	5	6	22	30	100	RTE-74
25	6.4	7.5	11.1	16	1.8	11	4	10	25	33	100	RTE-75
25	8.2	7.5	11.1	16	1.8	11	4	10	25	33	100	RTE-76
25	10.2	7.5	11.1	18	1.8	11	5	9	25	34	100	RTE-77
25	10.2	7.5	11.1	22	1.8	11	6	14	31	42	100	RTE-78
25	12.7	7.5	11.1	22	1.8	11	6	14	31	42	100	RTE-79
35	6.4	9.0	12.6	16	1.8	12	5	6	23	31	100	RTE-80
35	8.2	9.0	12.6	16	1.8	12	5	6	23	31	100	RTE-81
35	8.2	9.0	12.6	18	1.8	12	5	10	27	36	100	RTE-82
35	10.2	9.0	12.6	18	1.8	12	5	10	27	36	100	RTE-83
35	10.2	9.0	12.6	22	1.8	12	4	15	31	42	100	RTE-84
35	12.7	9.0	12.6	22	1.8	12	4	15	31	42	100	RTE-85
50	8.2	10.5	14.1	18	1.8	16	6	12	34	43	100	RTE-86
50	10.2	10.5	14.1	18	1.8	16	6	12	34	43	100	RTE-87
50	10.2	10.5	14.1	22	1.8	16	7	9	32	43	100	RTE-88
50	10.2	10.5	14.1	24	1.8	16	6	14	36	48	100	RTE-89
50	12.7	10.5	14.1	24	1.8	16	6	14	36	48	100	RTE-90
50	16.2	10.5	14.1	32	1.8	16	7	15	38	54	100	RTE-91
70	10.2	12.0	16.0	22	2.0	18	7	11	36	47	50	RTE-92
70	12.7	12.0	16.0	22	2.0	18	7	11	36	47	50	RTE-93
70	12.7	12.0	16.0	24	2.0	18	8	10	36	48	50	RTE-94
70	16.2	12.0	16.0	28	2.0	18	6	16	40	54	50	RTE-95
95	10.2	13.5	18.1	22	2.3	20	5	10	35	46	50	RTE-96
95	10.2	13.5	18.1	24	2.3	20	6	12	38	50	50	RTE-97
95	12.7	13.5	18.1	24	2.3	20	6	12	38	50	50	RTE-98
95	16.2	13.5	18.1	28	2.3	20	7	17	44	58	50	RTE-99
120	12.7	15.0	20.2	26	2.6	22	10	7	39	52	30	RTE-100
120	16.2	15.0	20.2	32	2.6	22	7	19	48	64	30	RTE-101
120	20.3	15.0	20.2	40	2.6	22	10	20	52	72	30	RTE-102
150	12.7	16.5	23.7	34	3.6	24	9	16	49	66	20	RTE-103
150	16.2	16.5	23.7	34	3.6	24	9	16	49	66	20	RTE-104
150	16.2	16.5	23.7	40	3.6	24	10	20	54	74	20	RTE-105
150	20.3	16.5	23.7	40	3.6	24	10	20	54	74	20	RTE-106
1.5	2.2	10.	23.7	40	3.6	24	10	20	54	74	20	RTE-106
1.5	2.2	1.6	3.2	6	0.8	5	2	4	11	14	200	RTE-1
1.5	2.6	1.6	3.2	6	0.8	5	2	4	11	14	200	RTE-2
1.5	3.2	1.6	3.2	6	0.8	5	2	4	11	14	200	RTE-3
1.5	3.7	1.6	3.2	6	0.8	5	2	4	11	14	200	RTE-4
1.5	4.2	1.6	3.2	6	0.8	5	2	4	11	14	200	RTE-5
1.5	3.2	1.6	3.2	6.8	0.8	5	1	3.6	9.6	13	200	RTE-6
1.5	3.7	1.6	3.2	6.8	0.8	5	1	3.6	9.6	13	200	RTE-7
1.5	4.2	1.6	3.2	6.8	0.8	5	1	3.6	9.6	13	200	RTE-8
1.5	3.2	1.6	3.2	8	0.8	5	2	5	12	16	200	RTE-9
1.5	4.2	1.6	3.2	8	0.8	5	2	5	12	16	200	RTE-10
1.5	5.2	1.6	3.2	8	0.8	5	2	5	12	16	200	RTE-11
1.5	4.2	1.6	3.2	7	0.8	5	1	5	11	14.5	200	RTE-12
1.5	4.2	1.6	3.2	10	0.8	5	2	6	13	18	200	RTE-13
1.5	5.2	1.6	3.2	10	0.8	5	2	6	13	18	200	RTE-14
1.5	6.4	1.6	3.2	10	0.8	5	2	6	13	18	200	RTE-15
1.5	6.4	1.6	3.2	12	0.8	5	1	6	12	18	200	RTE-16
2.5	3.2	2.3	3.9	6.5	0.8	5	1	3.5	9.5	12.7	200	RTE-17
2.5	3.7	2.3	3.9	6.5	0.8	5	1	3.5	9.5	12.7	200	RTE-18
2.5	3.7	2.3	3.9	8	0.8	5	2	5	12	16	200	RTE-19
2.5	4.2	2.3	3.9	8	0.8	5	2	5	12	16	200	RTE-20
2.5	5.2	2.3	3.9	8	0.8	5	2	5	12	16	200	RTE-21
2.5	5.2	2.3	3.9	10	0.8	5	1	7	13	18	200	RTE-22
2.5	6.4	2.3	3.9	10	0.8	5	1	7	13	18	200	RTE-23
2.5	5.2	2.3	3.9	12	0.8	5	2	9	16	22	200	RTE--24
2.5	6.4	2.3	3.9	12	0.8	5	2	9	16	22	200	RTE-25
2.5	8.2	2.3	3.9	12	0.8	5	2	9	16	22	200	RTE-26
2.5	6.4	2.3	3.9	16	0.8	5	2	10	17	25	200	RTE-27
2.5	8.2	2.3	3.9	16	0.8	5	2	10	17	25	200	RTE-28
2.5	10.2	2.3	3.9	16	0.8	5	2	10	17	25	200	RTE-29
2.5	10.2	2.3	3.9	18	0.8	5	1	14	20	29	200	RTE-30
2.5	12.7	2.3	3.9	18	0.8	5	1	14	20	29	200	RTE-31
4-6	4.2	3.5	5.5	8	1.0	6	2	5	13	17	200	RTE-32
4-6	5.2	3.5	5.5	8	1.0	6	2	5	13	17	200	RTE-33
4-6	4.2	3.5	5.5	10	1.0	6	3	5	14	19	200	RTE-34
4-6	5.2	3.5	5.5	10	1.0	6	3	5	14	19	200	RTE-35
4-6	5.2	3.5	5.5	8	1.0	6	3	9.8	18.8	22.8	200	RTE-36
4-6	5.2	3.5	5.5	12	1.0	6	2	6	14	20	200	RTE-37
4-6	6.4	3.5	5.5	12	1.0	6	2	6	14	20	200	RTE-38
4-6	8.2	3.5	5.5	12	1.0	6	2	6	14	20	200	RTE-39
4-6	5.2	3.5	5.5	12	1.0	6	3	7	16	22	200	RTE-40
4-6	6.4	3.5	5.5	12	1.0	6	3	7	16	22	200	RTE-41
4-6	6.4	3.5	5.5	14	1.0	6	2	10.5	18.5	25.5	200	RTE-42
4-6	8.2	3.5	5.5	14	1.0	6	2	10.5	18.5	25.5	200	RTE-43
4-6	9.7	3.5	5.5	14	1.0	6	2	10.5	18.5	25.5	200	RTE-44
4-6	8.2	3.5	5.5	16	1.0	6	3	13	22	3.	200	RTE-45
4-6	10.2	2.5	5.5	16	1.0	6	3	13	22	3.	200	RTE-46
4-6	8.2	3.5	5.5	18	1.0	6	3	12	21	30	200	RTE-47
4-6	10.2	3.5	5.5	18	1.0	6	.	12	21	3.	200	RTE-48
4-6	12.7	3.5	5.5	18	1.0	6	3	12	21	30	200	RTE-49
10	4.2	4.3	6.3	10	1.0	8	2	7	17	22	200	RTE-50
10	5.2	4.3	6.3	10	1.0	8	2	7	17	22	200	RTE-51
10	4.2	4.3	6.3	10	1.0	8	3	4	15	20	200	RTE-52
10	5.2	4.3	6.3	10	1.0	8	3	4	15	20	200	RTE-53
10	6.4	4.3	6.3	12	1.0	8	2	7	17	23	200	RTE-54
10	8.2	4.3	6.3	16	1.0	8	4	7	19	27	200	RTE-55
10	8.2	4.3	6.3	18	1.0	8	4	9	21	30	200	RTE-56
10	10.2	4.3	6.3	18	1.0	8	4	9	21	30	200	RTE-57
10	10.2	4.3	6.3	22	1.0	8	5	10	23	34	200	RTE-58
10	12.7	4.3	6.3	22	1.0	8	5	10	23	34	200	RTE-59

ALL DIMENSIONS ARE IN MM.

FINISH: ELECTRO TINNED
